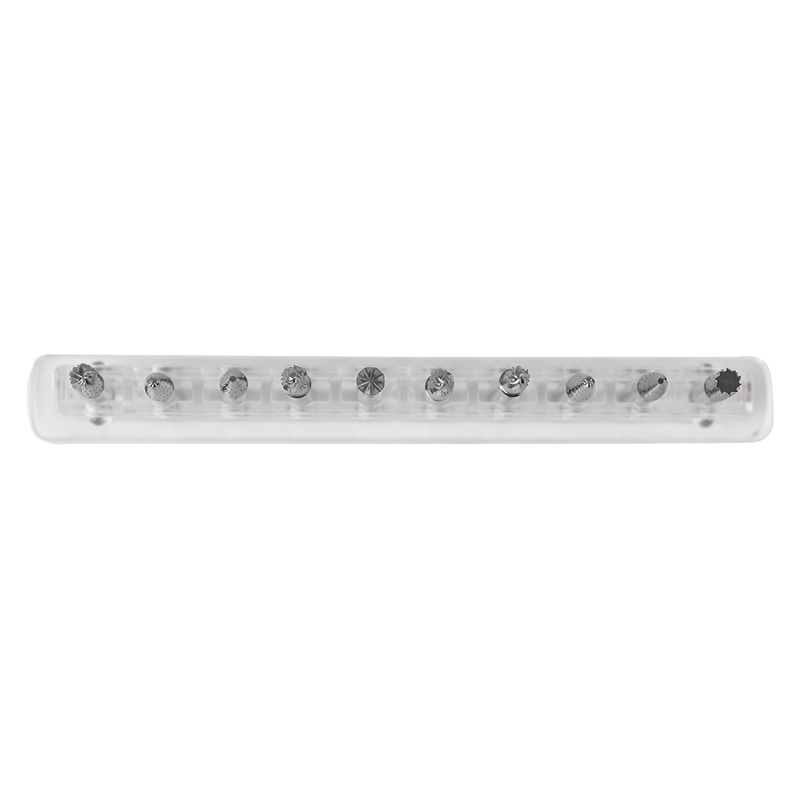

10 set cemented carbide rotary file combination set (3mm handle standard double cutting teeth)
Model: 3mm shank
Specification: see table
Dimensions: see table
Remarks: 10 standard double cutting teeth with 3mm shank are matched with common models; Suitable for most processing applications; The transparent small square box package protects the cutting edge, which is convenient for taking, placing and storage
18922987188 / 0769-27221035
10 set cemented carbide rotary file combination set (3mm handle standard double cutting teeth)
Model: 3mm shank
Specification: see table
Dimensions: see table
Remarks: 10 standard double cutting teeth with 3mm shank are matched with common models; Suitable for most processing applications; The transparent small square box package protects the cutting edge, which is convenient for taking, placing and storage
18922987188 / 0769-27221035
| 規格 | 對應德標 DIN8033 | 頭徑D1 mm | 頭長L1 mm | 柄徑D2 mm | 總長L2 mm | 標準雙切齒（X) 訂貨編號 |
| A0312 | ZYA0312 | 3 | 12 | 3 | 38 | A0312-X03 |
| C0314 | WRC0312 | 3 | 14 | 3 | 38 | C0314-X03 |
| D0303 | KUD03*2.8 | 3 | 3 | 3 | 38 | D0303-X03 |
| E0306 | TRE0306 | 3 | 6 | 3 | 38 | E0306-X03 |
| F0313 | RBF0313 | 3 | 13 | 3 | 38 | F0313-X03 |
| G0313 | SPG0313 | 3 | 13 | 3 | 38 | G0313-X03 |
| H0306 | FLAME0307 | 3 | 6 | 3 | 38 | H0306-X03 |
| K0303 | KSK0302 | 3 | 3 | 3 | 38 | K0303-K03 |
| L0313 | KEL0313 | 3 | 13 | 3 | 38 | L0313-X03 |
| M0311 | SKM0311 | 3 | 11 | 3 | 38 | M0311-X03 |
