- Wide tooth
- Cast iron teeth
- Standard single tooth
- Standard double tooth
- Diamond tooth
- Special rotary file for ships/high-speed rail
- Rotary file set
- Extended handle
Mr. Lin: 18922987188
Landline: 0769-27221035
Fax: 0769-28055429
Email: [email protected]
Address: Building 1, Wansheng Science and
Technology Park, No. 15, Qinghua Road, Nancheng
Street, Dongguan City, Guangdong Province

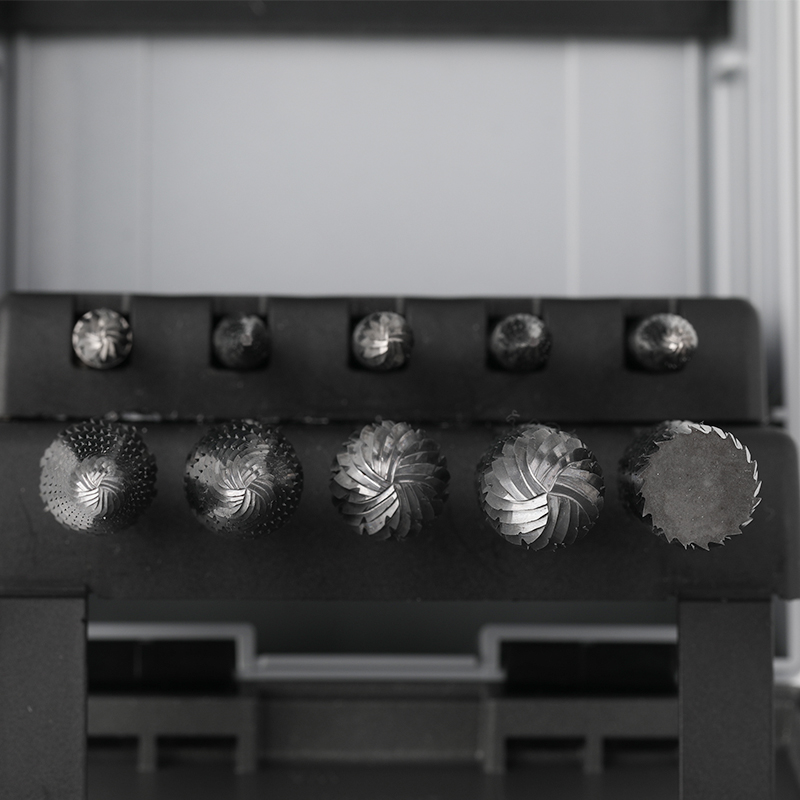

10 sets of cemented carbide rotary file combination set (6mm handle standard double cutting teeth)
Model: 6mm shank
Specification: see table
Dimensions: see table
Remarks: 10 standard double cutting teeth with 6mm shank are matched with common models; Suitable for aluminum alloy surface contour machining application; German rose plastic box packaging protects the cutting edge for easy access and storage
18922987188 / 0769-27221035
10 sets of cemented carbide rotary file combination set (6mm handle standard double cutting teeth)
Model: 6mm shank
Specification: see table
Dimensions: see table
Remarks: 10 standard double cutting teeth with 6mm shank are matched with common models; Suitable for aluminum alloy surface contour machining application; German rose plastic box packaging protects the cutting edge for easy access and storage
18922987188 / 0769-27221035
| 規格 | 對應德標 DIN8033 | 頭徑D1 mm | 頭長L1 mm | 柄徑D2 mm | 總長L2 mm | 標準雙切齒（X） 訂貨編號 |
| A1225 | ZYA1225 | 12 | 25 | 6 | 70 | A1225-X06 |
| C0618 | WRC0616 | 6 | 18 | 6 | 56 | C0618-X06 |
| C1225 | WRC1225 | 12 | 25 | 6 | 70 | C1225-X06 |
| D0605 | KUD0605 | 6 | 5 | 6 | 56 | D0605-X06 |
| D1211 | KUD1211 | 12 | 11 | 6 | 56 | D1211-X06 |
| F0618 | RBF0618 | 6 | 18 | 6 | 56 | F0618-X06 |
| F1225 | RBF1225 | 12 | 25 | 6 | 70 | F1225-X06 |
| G0616 | SPG0618 | 6 | 16 | 6 | 56 | G0616-X06 |
| L1230 | KEL1230 | 12 | 30 | 6 | 75 | L1230-X06 |
| M0618 | SKM0618 | 6 | 18 | 6 | 56 | M0618-X06 |
