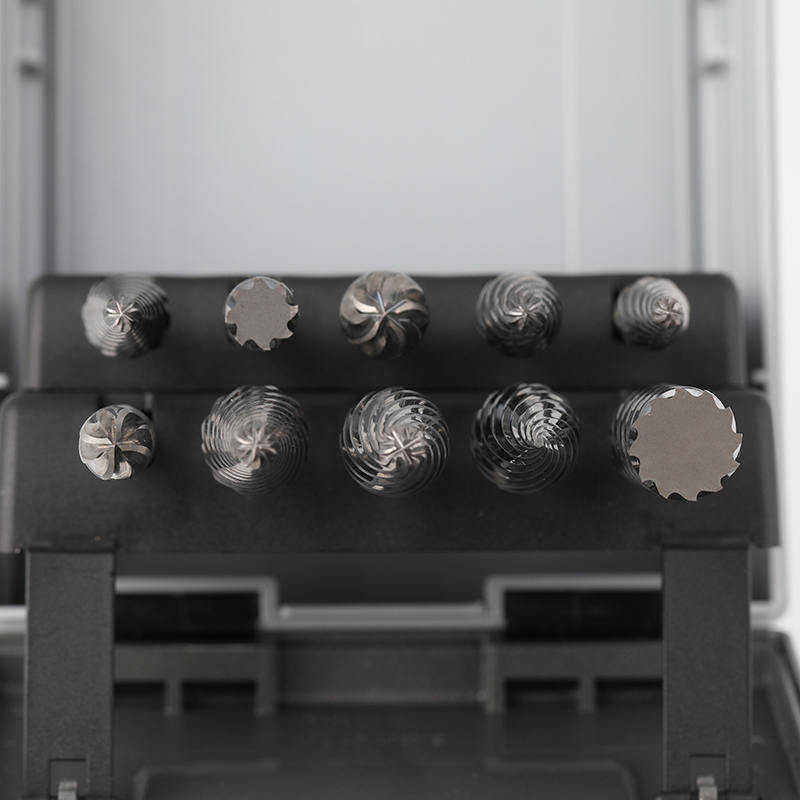

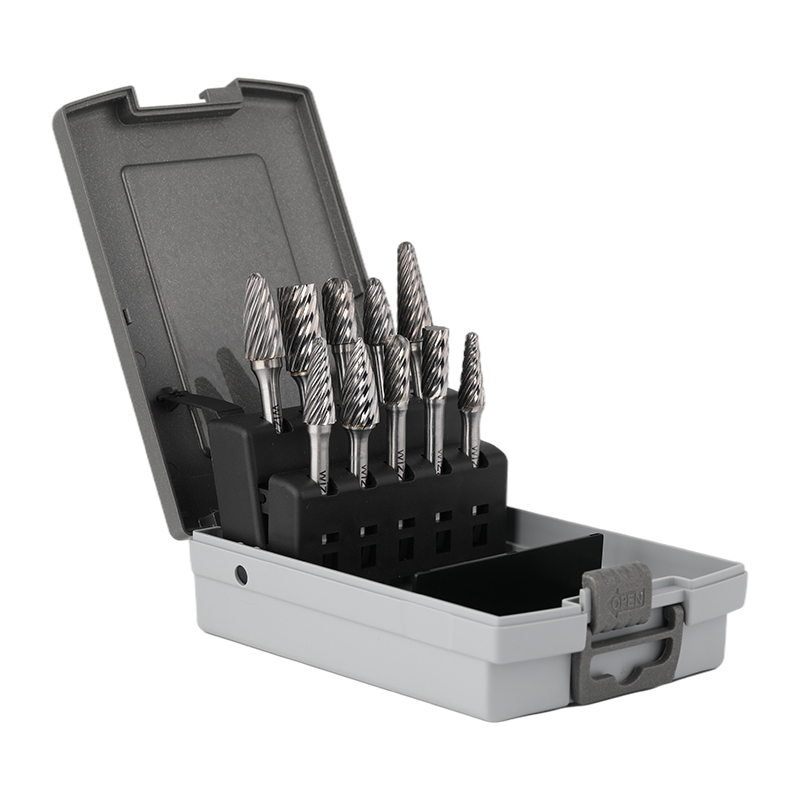

10 sets of cemented carbide rotary file combination set (6mm handle cast iron teeth)
Model: 6mm shank
Specification: see table
Dimensions: see table
Remarks: 10 6mm handle cast iron teeth are matched with common models; Suitable for aluminum alloy surface contour machining application; German rose plastic box packaging protects the cutting edge for easy access and storage
18922987188 / 0769-27221035
10 sets of cemented carbide rotary file combination set (6mm handle cast iron teeth)
Model: 6mm shank
Specification: see table
Dimensions: see table
Remarks: 10 6mm handle cast iron teeth are matched with common models; Suitable for aluminum alloy surface contour machining application; German rose plastic box packaging protects the cutting edge for easy access and storage
18922987188 / 0769-27221035
| 規格 | 對應德標 DIN8033 | 頭徑D1 mm | 頭長L1 mm | 柄徑D2 mm | 總長L2 mm | 標準雙切齒（N) 訂貨編號 |
| A0820 | ZYA0819 | 8 | 20 | 6 | 64 | A0820-N06 |
| A1225 | ZYA1225 | 12 | 25 | 6 | 70 | A1225-N06 |
| C0820 | WRC0819 | 8 | 20 | 6 | 64 | C0820-N06 |
| C1020 | WRC1020 | 10 | 20 | 6 | 65 | C1020-N06 |
| F1020 | RBF1020 | 10 | 20 | 6 | 65 | F1020-N06 |
| F1225 | RBF1225 | 12 | 25 | 6 | 70 | F1225-N06 |
| G1225 | SPG1225 | 12 | 25 | 6 | 70 | G1225-N06 |
| L0822 | KEL0822 | 8 | 22 | 6 | 67 | L0822-N06 |
| L1027 | KEL1027 | 10 | 27 | 6 | 72 | L1027-N06 |
| L1230 | KEL1230 | 12 | 30 | 6 | 75 | L1230-N06 |
